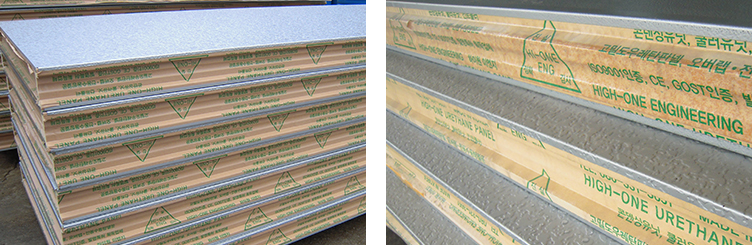

Special features of high density urethane panel

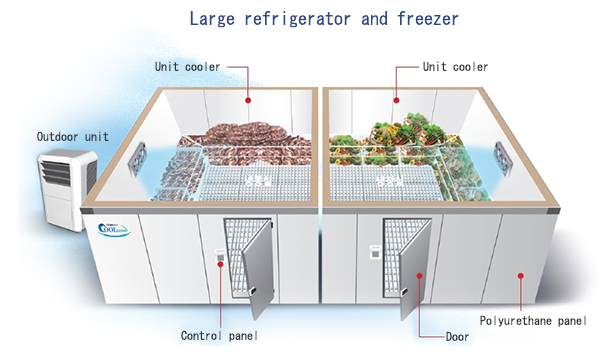

Urethane panel for refrigeration and freezing uses hard polyurethane foam, which has the most heat insulation effect, for core material. It is conveniently used for small and large storerooms as it has excellent heat insulation effect, and is admitted of the quality through periodic test.

From small to large size

Hiwon panel, which can be easily assembled by anyone and has excellent air tightness and heat insulation, is produced with the basic size of minimum 180mm to maximum 1,000mm width and maximum 8.8m length. We have the production equipment to meet customer specification within the scope specified above.

Product specification and use

Thickness Proper temperature range Use
75T -10℃ ~ +30℃ Cold storage and low temperature cold storage
100T -30℃ ~ +40℃ Cold storage and freezing
125T -40℃ ~ +45℃ Cold storage, freezing, quick freezing
150T -50℃ ~ +50℃ Quick freezing

Special features of Hiwon panel

① Excellent heat insulation - show excellent heat insulation thanks to low heat conductivity

② The best durability - can be used for a long time as it is not contracted and expanded by heat

③ Good air tightness - make optimum storage environment by maintaining optimum density and minimizing heat conduction and cold leakage

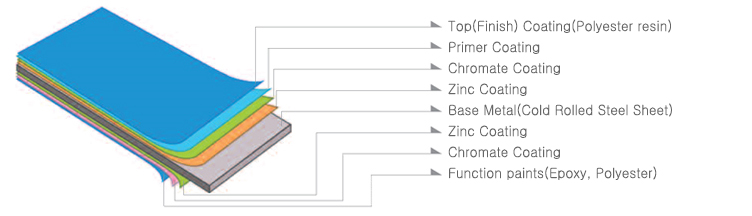

④ Classy and beautiful appearance - widened choices by preparing a variety of surface materials and colors, such as galvanized steel sheet, PVC coated steel sheet, stainless steel sheet, color steel sheet, embossing steel sheet, etc.

⑤ Easiness in moving, extension and disassembly - As the equipment is light, it can be easily installed, disassembled and assembled.

⑥ Reliable quality - The equipment is reliable as it is manufactured under our strict quality control system.

⑦ Maintaining freshness - Freshness is improved with the use of functional steel sheet and its sterilization effect of putrefactive bacteria inside the equipment.

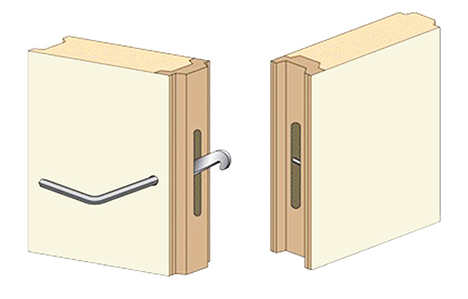

Fastener type panel

Made as fastener type and connected by compression with fastener (hook), the product has improved air tightness and heat insulation, and so it is suitable for cold storage and freezer panel. Fastener is made with high strength PVC, and so it does not break or rust and it is solid with no deformation.

Product specification and use

Thickness 75T 100T 125T 150T
Proper temperature -10℃ ~ +30℃ -30℃ ~ +40℃ -40℃ ~ +45℃ -50℃ ~ +50℃
Use Cold storage and low temperature cold storage Cold storage and freezing Cold storage, freezing, quick freezing Quick freezing
Width Min. 180mm ~ Max. 1,000mm
Length Max 8.8m
Surface material Galvanized steel sheet, PVC coated steel sheet, Stainless steel sheet, Color steel sheet, Embossing steel sheet.

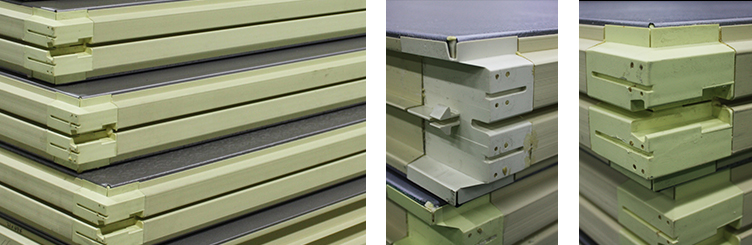

Brim type panel

It is high density brim type. The panel has improved heat insulation and also good flame resistance thank to polyurethane foam (PUR) in it, and it has good adhesive strength without need of separate adhesive as it has self-adhesive strength.

PVC brim panel

Merits of existing urethane panel are applied to PVC brim panel. In addition, its advantages includes easiness in connecting the corners of the panel thanks to the use of the best quality plastic finishing material and simple installation.

Product specification and use

Thickness 75T 100T 125T 150T
Proper temperature -10℃ ~ +15℃ -20℃ ~ -10℃ -30℃ ~ -20℃ -40℃ ~ -30℃
Use Cold storage and low temperature cold storage Cold storage and freezing Cold storage, freezing, quick freezing Quick freezing
Width Min. 180mm ~ Max. 1,000mm
Length Max. 8.8m
Surface material Galvanized steel sheet, PVC coated steel sheet, Stainless steel sheet, Color steel sheet, Embossing steel sheet.
