UNIT COOLER

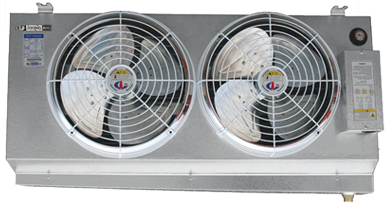

S-TYPE

Features of product

3/8”(Ø9.52) Use Inner Grooved Tube &
Corrugated Fin

Pipe pitch: 27.5mm X 31.75mm

Structure that enables easy maintenance

Use light and corrosion resistant aluminum embossing plate

Bar insert type body heater, drain heater and fan guide heater are mounted (But fan guide heater is applied to only L-TYPE. For M-TYPE, it is an optional specification)

Temperature switch for preventing overheating is mounted

For small · medium size cold storage · freezing warehouse, ceiling mounting type

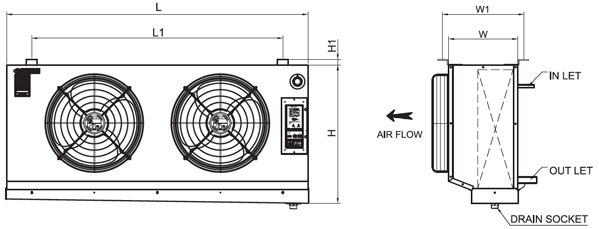

DIMENSION

SPECIFICATION

Model Nominal HP Room temp (℃) Fin Pitch (mm) Heat transfer area(m²) Temperature difference & kcal/h Fan Motor Air volume (CMM) Defrost heater
(kW X ea)		 Pipe caliber (Ø)
TD
7℃		 TD
10℃		 (Ø×ea) 1Ø (W×P) 3Ø (W×P) Body Drain Guide Inlet Outlet Drain
S020 M 2 -10 6.0 7.88 1309 2385 350×1 100×4 0.1×4 35 0.76x2 0.7X1 - 12.7 19.05 25A
L -25 8.0 6.12 1017 1852 100×1
S030 M 3 -10 6.0 10.10 1678 3058 400×1 118×6 0.1×6 47 0.9x2 0.8X1 - 12.7 22.22 25A
L -25 8.0 7.84 1303 2375 100×1
S040 M 4 -10 6.0 13.53 2249 4097 400×1 118×6 0.1×6 47 1.2x2 1.0X1 - 12.7 22.22 25A
L -25 8.0 10.51 1746 3182 100×1
S050 M 5 -10 6.0 19.39 3222 5871 400×2 118×6 0.1×6 94 1.6x2 1.3X1 - 12.7 28.58 25A
L -25 8.0 15.06 2502 4559 100×2
S075 M 7.5 -10 6.0 26.13 4342 7912 450×2 200×6 0.2×6 118 1.8x3 1.5X1 - 15.88 34.92 25A
L -25 8.0 20.29 3372 6144 100×2
S100 M 10 -10 6.0 39.20 6513 11867 450×2 200×6 0.2×6 118 1.8x3 1.5X1 - 15.88 34.92 25A
L -25 8.0 30.44 5058 9216 100×2
S120 M 12 -10 6.0 42.61 7079 12899 450×2 200×6 0.2×6 118 2.0x3 1.6X1 - 15.88 34.92 25A
L -25 8.0 33.09 5498 10018 100×2
S150 M 15 -10 6.0 59.08 9817 17887 500×2 200×6 0.2×6 144 2.0x4 1.6X1 - 19.05 41.28 25A
L -25 8.0 45.88 7624 13891 100×2
S200 M 20 -10 6.0 90.89 15103 27519 600×2 750×6 0.75×6 236 2.3x6 2.1X1 - 22.22 41.28 25A
L -25 8.0 70.59 11729 21371 100×2
S250 M 25 -10 6.0 108.31 17997 32793 600×2 750×6 0.75×6 236 2.5x7 2.3X1 - 22.22 53.98 25A
L -25 8.0 84.12 13977 25468 100×2

DIMENSIONS

External S020 S030 S040 S050 S075 S100 S120 S150 S200 S250
M L M L M L M L M L M L M L M L M L M L
L 657 767 937 1227 1417 1417 1517 1567 1845 1997
W 325 325 325 325 325 380 380 380 520 520
H 582 582 582 586 648 648 650 835 1027 1091
H1 27 27 27 27 27 27 35 35 35 35
L1 415 525 695 985 1175 1175 1275 1325 1525 1675
W1 361 361 361 361 361 416 450 450 600 600

Power supply of either 1Ø 220V 60Hz or 3Ø 220V/380V 60Hz is good. (Other specifications than the above motor specification are optional)

Detachment and attachment of M-TYPE defrost heater and temperature switch is optional specifications.

The products with special specifications other than the above product should be ordered separately.

The sizes and specifications are subject to change for quality development without prior notice.

K-TYPE

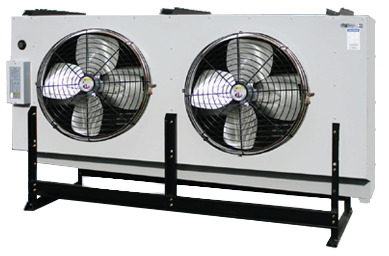

(Propeller fan + Eelectric defrosting)

Features of product

1/2”(Ø12.7) Use Copper Tube & Corrugated Fin

Pipe pitch: 33mm×38.1mm

The structure that enables easy maintenance, Use electro-galvanized steel sheet (EGI) and acrylic urethane coating.

Bar insert type body heater, drain heater, fan guide heater and temperature switch for preventing overheating are mounted.

For medium · large size cold storage · freezing warehouse, ceiling mounting and floor fixing type (for general use)

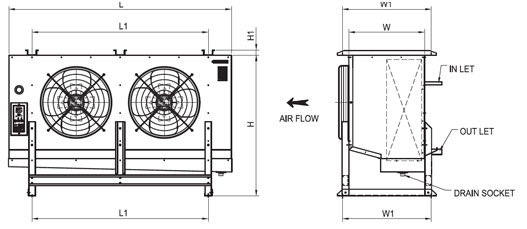

DIMENSION

SPECIFICATION

Model Nominal HP Room temp (℃) Fin Pitch (mm) Heat transfer area(m²) Temperature difference & kcal/h Fan Motor Air volume (CMM) Defrost heater
(kW X ea)		 Pipe caliber (Ø)
TD
5℃		 TD
7℃		 TD
10℃		 (Ø×ea) 3Ø (kW×P) Body Drain Guide Inlet Outlet Drain
K100PE M 10 -10 6.5 43.34 4417 6969 12393 500x2 0.4×6 144 1.9x3 1.4x2 0.6x2 15.88 34.92 40A
L -25 8.5 56.47 5756 9081 16147 1.9x6
K150PE M 15 -10 6.5 71.51 7288 11499 20448 500x2 0.4×6 144 1.9x6 1.4x2 0.6x2 15.88 34.92 50A
L -25 8.5 75.30 7674 12108 21530 1.9x6 22.22 41.28
K200PE M 20 -10 6.5 79.46 8098 12777 22720 500x2 0.4×6 144 2.1x6 1.3x2 0.65x2 22.22 41.28 50A
L -25 8.5 89.24 9095 14350 25517 550x2 200 2.2x6 1.7x2
K250PE M 25 -10 6.5 96.31 9816 15487 27539 550x2 0.4×6 200 2.1x6 1.7x2 0.65x2 22.22 53.98 50A
L -25 8.5 109.52 11162 17611 31316 600x2 0.75×6 236 2.5×8 1.9×2
K300PE M 30 -10 6.5 105.94 10798 17036 30293 550x2 0.4×6 200 2.1x6 1.7x2 0.65x2 22.22 53.98 65A
L -25 8.5 121.69 12403 19568 34796 600x2 0.75×6 236 2.8×8 2.2×2 0.75×2
K350PE M 35 -10 6.5 134.19 13677 21579 38372 600x2 0.75×6 236 2.7x8 2.2x2 0.75x2 22.22 53.98 65A
L -25 8.5 139.94 14263 22503 40015 550x3 0.4×6 300 3.2×8 2.5×2
K400PE M 40 -10 6.5 146.39 14921 23540 41860 600x2 0.75×6 236 2.7x8 2.1x2 0.75x2 22.22 53.98 65A
L -25 8.5 158.20 16123 25438 45235 550x3 0.4×6 300 3.4×8 2.6×2 28.58 53.98
K450PE M 45 -10 6.5 169.51 17276 27257 48469 600x2 0.75×6 236 3.1x8 2.4x2 0.75x2 28.58 53.98 65A
L -25 8.5 171.38 17467 27558 49004 600x3 354 3.6x8 2.6x2 0.75x3

DIMENSIONS

External K100PE K150PE K200PE K250PE K300PE K350PE K400PE K450PE
M L M L M L M L M L M L M L M L
L 1680 1680 1680 1680 1680 2060 2060 2250 2060 2530 2480 2830 2680 2830 2830 3180
W 455 520 520 585 520 585 585 585 585 585 585 585 585 585 585 585
H 1080 1080 1080 1080 1080 1155 1080 1231 1155 1231 1155 1231 1155 1308 1231 1308
H1 40
L1 1330 1330 1330 1330 1330 1710 1710 1900 1710 2180 2130 2480 2330 3480 2480 2830
W1 505 570 570 635 570 635 635 635 635 635 635 635 635 635 635 635

Power supply of 3Ø 220V/380V 60Hz is good. (Other specifications than the above motor specification are optional)

The products with special specifications other than the above product should be ordered separately.

The sizes and specifications are subject to change for quality development without prior notice.

K-TYPE

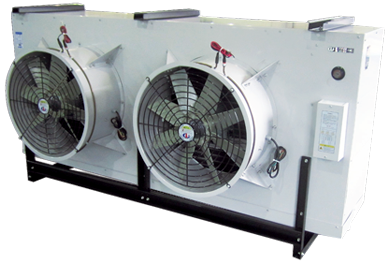

(Axial fan ＋ electric defrosting)

Features of product

1/2”(Ø12.7) Use Copper Tube & Corrugated Fin

Pipe pitch: 33mm×38.1mm

The structure that enables easy maintenance, Use electro-galvanized steel sheet (EGI) and acrylic urethane coating. Use Ames fan.

Bar insert type body heater, drain heater, fan guide heater and temperature switch for preventing overheating are mounted.

For medium · large size cold storage · freezing warehouse, ceiling mounting and floor fixing type (for general use)

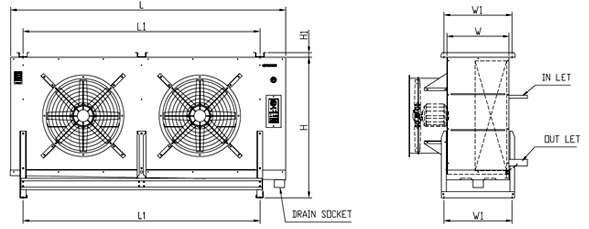

DIMENSION

SPECIFICATION

Model Nominal HP Room temp (℃) Fin Pitch (mm) Heat transfer area(m²) Temperature difference & kcal/h Fan Motor Air volume (CMM) Defrost heater
(kW X ea)		 Pipe caliber (Ø)
TD
5℃		 TD
7℃		 TD
10℃		 (Ø×ea) 3Ø (kW×P) Body Drain Guide Inlet Outlet Drain
K-100AE M 10 -10 6.5 43.34 4417 6969 12393 500x2 0.75×4 300 1.9x3 1.4x2 0.6x2 15.88 34.92 40A
L -25 8.5 56.47 5756 9081 16147 1.9x6
F -40 10 71.62 7299 11516 20478 1.9x6 22.22 41.28 50A
K-150AE M 15 -10 6.5 71.51 7288 11499 20448 500x2 0.75×4 300 1.9x6 1.4x2 0.6x2 15.88 34.92 50A
L -25 8.5 75.30 7674 12108 21530 1.9x6 22.22 41.28
F -40 10 89.52 9124 14395 25598 1.9x9
K-200AE M 20 -10 6.5 79.46 8098 12777 22720 550x2 0.75×4 300 2.1x6 1.3x2 0.65x2 22.22 41.28 50A
L -25 8.5 89.24 9095 14350 25517 2.2x6 1.7x2
F -40 10 106.10 10814 17061 30338 2.2x9
K-250AE M 25 -10 6.5 96.31 9816 15487 27539 550x2 0.75×4 300 2.1x6 1.7x2 0.65x2 22.22 53.98 50A
L -25 8.5 109.52 11162 17611 31316 2.5x8 1.9x2
F -40 10 129.31 13179 20793 36974 2.5x12
K-300AE M 30 -10 6.5 105.94 10798 17036 30293 550x2 0.75×4 300 2.1x6 1.7x2 0.65x2 22.22 53.98 65A
L -25 8.5 121.69 12403 19568 34796 600x2 1.5x4 400 2.8x8 2.2x2 0.75x2
F -40 10 143.68 14643 23103 41083 2.8x12
K-350AE M 35 -10 6.5 134.19 13677 21579 38372 600x2 1.5×4 400 2.7x8 2.2x2 0.75x2 22.22 53.98 65A
L -25 8.5 139.94 14263 22503 40015 3.2x8 2.5x2
F -40 10 165.23 16840 26569 47245 3.2x12
K-400AE M 40 -10 6.5 146.39 14921 23540 41860 600x2 1.5×4 400 2.7x8 2.1x2 0.75x2 22.22 53.98 65A
L -25 8.5 158.20 16123 25438 45235 3.4x8 2.6x2 28.58
F -40 10 185.67 18924 29856 53092 3.4x12
K-450AE M 45 -10 6.5 169.51 17276 27257 48469 600x2 1.5x4 400 3.1x8 2.4x2 0.75x2 28.58 53.98 65A
L -25 8.5 171.38 17467 27558 49004 600x3 600 3.6x8 2.6x2 0.75x3
F -40 10 201.15 20501 32344 57516 3.6x12 2.8x2

DIMENSIONS

External K100AE K150AE K200AE K250AE K300AE K350AE K400AE K450AE
M L F M L F M L F M L F M L F M L F M L F M L F
L 1600 1600 1600 1600 1600 1600 1750 1850 1850 1750 2050 2050 1800 2300 2300 2200 2600 2600 2200 2700 2700 2500 2900 2900
W 390 455 520 455 520 585 455 520 585 520 520 585 520 520 585 520 520 585 520 520 585 520 520 585
H 1021 1097 1173 1097 1097 1173 1097 1097 1173 1021 1173 1249 1097 1173 1249 1097 1173 1249 1173 1249 1325 1173 1249 1325
H1 40
L1 1330 1330 1330 1330 1330 1330 1480 1580 1580 1480 1780 1780 1480 1980 1980 1880 2280 2280 1880 2380 2380 2180 2580 2580
W1 440 505 570 505 570 635 505 570 635 570 570 635 570 570 635 570 570 635 570 570 635 570 570 635

Power supply of 3Ø 220V/380V 60Hz is good. (Other specifications than the above motor specification are optional)

The products with special specifications other than the above product should be ordered separately.

The sizes and specifications are subject to change for quality development without prior notice.

K-TYPE

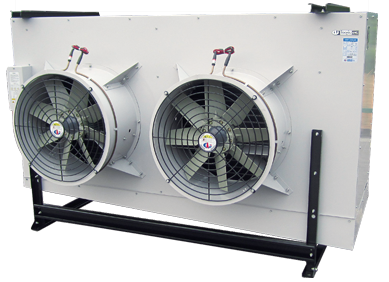

(Axial fan ＋ water spraying defrosting)

Features of product

1/2”(Ø12.7) Use Copper Tube & Corrugated Fin

Pipe pitch: 33mm×38.1mm

The structure that enables easy maintenance, Use electro-galvanized steel sheet (EGI) and acrylic urethane coating. Use Ames fan.

Water spraying defrosting, drain heater, fan guide heater and temperature switch for preventing overheating are mounted

For medium · large size cold storage · freezing · freezing warehouse, ceiling mounting and floor fixing type (for general use)

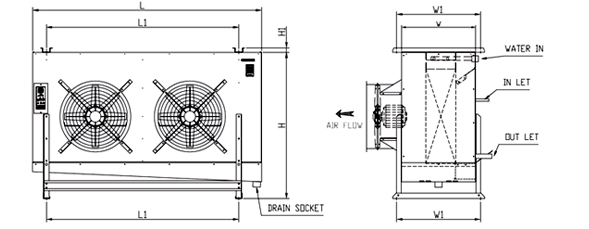

DIMENSION

SPECIFICATION

Model Nominal HP Room temp (℃) Fin Pitch (mm) Heat transfer area(m²) Temperature difference & kcal/h Fan Motor Air volume (CMM) 제상수 Defrost water (L) Defrost heater
(kW X ea)		 Pipe caliber (Ø)
TD
5℃		 TD
7℃		 TD
10℃		 (Ø×ea) 3Ø (kW×P) 수량 Water Inlet Outlet Drain Guide Inlet Outlet
K-100AW M 10 -10 6.5 43.34 4417 6969 12393 500x2 0.75×4 300 33.6 32A 50A 1.4x2 0.6x2 15.88 34.92
L -25 8.5 56.47 5756 9081 16147 57
F -40 10 71.62 7299 11516 20478 76.9 22.22 41.28
K-150AW M 15 -10 6.5 71.51 7288 11499 20448 500x2 0.75×4 300 60.5 32A 50A 1.4x2 0.6x2 15.88 34.92
L -25 8.5 75.30 7674 12108 21530 76.5 22.22 41.28
F -40 10 89.52 9124 14395 25598 113.5 40A 65A
K-200AW M 20 -10 6.5 79.46 8098 12777 22720 500x2 0.75×4 300 67.3 32A 50A 1.3x2 0.65x2 22.22 41.28
L -25 8.5 89.24 9095 14350 25517 97.5 1.7x2
F -40 10 106.10 10814 17061 30338 131.5 40A 65A
K-250AW M 25 -10 6.5 96.31 9816 15487 27539 550x2 0.75×4 300 77.9 40A 65A 1.7x2 0.65x2 22.22 53.98
L -25 8.5 109.52 11162 17611 31316 118.4 1.9x2
F -40 10 129.31 13179 20793 36974 159.7 50A 80A
K-300AW M 30 -10 6.5 105.94 10798 17036 30293 550x2 0.75×4 300 85.7 40A 65A 1.7x2 0.65x2 22.22 53.98
L -25 8.5 121.69 12403 19568 34796 600x2 1.5×4 400 136.2 2.2x2 0.75x2
F -40 10 143.68 14643 23103 41083 183.6 50A 80A
K-350AW M 35 -10 6.5 134.19 13677 21579 38372 600x2 1.5×4 400 109.7 40A 65A 2.2x2 0.75x2 22.22 53.98
L -25 8.5 139.94 14263 22503 40015 150 2.5x2
F -40 10 165.23 16840 26569 47245 209.2 50A 80A
K-400AW M 40 -10 6.5 146.39 14921 23540 41860 600x2 1.5×4 400 117.4 40A 65A 2.1x2 0.75x2 22.22 53.98
L -25 8.5 158.20 16123 25438 45235 168.1 50A 80A 2.6x2 28.58
F -40 10 185.67 18924 29856 53092 226.1
K-450AW M 45 -10 6.5 169.51 17276 27257 48469 600x2 1.5×4 400 135.4 40A 65A 2.4x2 0.75x2 28.58 53.98
L -25 8.5 171.38 17467 27558 49004 600x3 600 178.4 50A 80A 2.6x2 0.75x3
F -40 10 201.15 20501 32344 57516 259 2.8x2

DIMENSIONS

External K100AW K150AW K200AW K250AW K300AW K350AW K400AW K450AW
M L F M L F M L F M L F M L F M L F M L F M L F
L 1650 1650 1650 1650 1650 1650 1800 1900 1900 1800 2100 2100 1800 2300 2300 2200 2600 2600 2200 2700 2700 2500 2900 2900
W 520 585 650 585 650 715 585 650 715 650 650 715 650 650 715 650 650 715 650 650 715 650 650 715
H 1226 1302 1378 1302 1302 1378 1302 1302 1378 1226 1378 1455 1302 1378 1455 1302 1378 1455 1378 1455 1532 1378 1455 1532
H1 40
L1 1330 1330 1330 1330 1330 1330 1480 1580 1580 1480 1780 1780 1480 1980 1980 1880 2280 2280 1880 2380 2380 2180 2580 2580
W1 570 635 700 635 700 765 635 700 765 700 700 765 700 700 765 700 700 765 700 700 765 700 700 765

Power supply of 3Ø 220V/380V 60Hz is good. (Other specifications than the above motor specification are optional)

The products with special specifications other than the above product should be ordered separately.

The sizes and specifications are subject to change for quality development without prior notice.
