Condensing unit

PA-TYPE (for low temperature)

Features of product

Integral condensing unit for low temperature

semi-sealed reciprocating BITZER compressor is applied

DEVICE

SPECIFICATION


Type name (Model name)			PA0030L	PA0050L	PA0075L	PA0100L	PA0150L	PA0200L	PA0250L	PA0300L	PA0400L
Nominal output(HP)			3HP (2.2㎾)	5HP (3.7㎾)	7.5HP (5.5㎾)	10HP (7.5㎾)	15HP (11㎾)	20HP (15㎾)	25HP (18.5㎾)	30HP (22㎾)	40HP (30㎾)
Power supply	Main power supply		3ph 220 / 380V 60HZ
Power supply	Control power supply		1ph 220V 60HZ
Used refrigerant			R-22
Freezing capacity(Kcal/h) *CT : 45℃	ET℃	-10℃	8,627	13,180	21,090	23,972	37,402	44,383	57,060	65,840	79,507
		-20℃	5,382	8,327	13,055	14,606	23,460	28,273	36,078	41,728	50,626
		-30℃	3.035	4,806	7,684	8,912	13,094	15,229	19,634	22,844	27,724
		-35℃	2,138	3,455	5,446	6,310	9,130	10,647	13,692	15,969	19,584
Compressor	Type		4FES-3	4FES-5	4FES-9	4FES-12	4FES-18	4FES-23	4FES-28	4FES-34	4FES-44
	Start Electric Current		97.3 / 56.2	136.8 / 79.0	171.0 / 103.0	208.0 / 126.0	333.0 / 201.0	333.0 / 201.0	491.0 / 296.0	491.0 / 296.0	851.0 / 513.0
	Operating Electric Current		20.0 / 12.1	30.5 / 18.4	41.9 / 25.3	47.8 / 28.8	77.3 / 46.6	92.4 / 55.7	112.0 / 67.6	137.9 / 83.2	175.2 / 105.7
	CMH		21.78	32.39	49.88	58.53	88.83	101.98	133.4	153	183
	Oil	Form	SUNSO 3GS
	Oil	Volume	2	2	2.6	2.6	4	4.5	4.8	4.75	4.75
	Cooling Type		Refrigerant Cooling
	Crankcase Heater		120		140
Condenser	Heat Exchange		FIN & TUBE
	Air blower	Fan	Ø 400	Ø 400	Ø 500	Ø 500	Ø 600	Ø 630	Ø 600	Ø 630	Ø 600
		Output(W)	0.1㎾ x 6PX 2EA	0.1㎾ x 6PX 2EA	0.2㎾ x 6PX 2EA	0.2㎾ x 6PX 2EA	0.4㎾ x 6PX 2EA	0.75㎾ x 6PX 2EA	0.4㎾ x 6PX 3EA	0.75㎾ x 6PX 3EA	0.4㎾ x 6PX 4EA
		Air Volume	98	98	168	168	296	362	444	543	592
Receiver tank	Volume(ℓ)		3.4ℓ	6.5ℓ	8.7ℓ	14.8ℓ	26ℓ	39ℓ	49ℓ	49ℓ	65ℓ
Receiver tank	Pusible Plug		Ø4.5 (72℃)		Ø5.2 (72℃)						Ø8.5 (72℃)
Condenser Pressure Control			High Pressure Switch
Control Pressure Control			Dual Pressure Switch / Compressor anti Overhead, Safety Valve-option,
Content			Flexible Tube, Muffler, Oil seperator, Receiver Tank, Filter Drier, Sight Glass, Solenoid Valve, Bracket Valve, Pressure Gauge, Accumulator, CiC Countrol System(option)
Connection piping	Gas Inlet		7/8" (22.22㎜)	7/8" (22.22㎜)	1-1/8" (28.58㎜)	1-1/8" (28.58㎜)	1-3/8" (34.92㎜)	1-5/8" (41.28㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)
Connection piping	Liquid Outlet		3/8" (9.52㎜)	1/2" (12.7㎜)	1/2" (12.7㎜)	5/8" (15.88㎜)	3/4" (19.05㎜)	3/4" (19.05㎜)	7/8" (22.22㎜)	7/8" (22.22㎜)	1-1/8" (28.58㎜)
Outside dimension	L(length)		1,180	1,320	1,550	1,550	1,641	1,840	2,325	2,325	2,885
	W(Width)		600	680	720	720	830	903	903	903	1,018
	H(Height)		1,440	1,450	1,409	1,460	1,751	1,801	1,901	1,901	2,106
Anchor size(L' x W')			1016x625	1050x708	1233x747	1233x747	1324x855	1530x930	2002x930	2002x930	2562x1045
Weight (kg)			250	280	390	410	530	600	780	820	1100

PA-TYPE (for medium temperature)

Features of product

Integral condensing unit for medium temperature

semi-sealed reciprocating BITZER compressor is applied

DEVICE

SPECIFICATION


Type name (model name)			PA0030M	PA0050M	PA0075M	PA0100M	PA0150M	PA0200M	PA0250M	PA0300M	PA0400M	PA0500M
Nominal output(HP)			3HP (2.2㎾)	5HP (3.7㎾)	7.5HP (5.5㎾)	10HP (7.5㎾)	15HP (11㎾)	20HP (15㎾)	25HP (18.5㎾)	30HP (22㎾)	40HP (30㎾)	50HP (37㎾)
Power supply	Main power supply		3ph 220 / 380V 60HZ
Power supply	Control power supply		1ph 220V 60HZ
Used refrigerant			R-22
Freezing capacity(Kcal/h) *CT : 45℃	ET℃	+5℃	11,867	15,700	23,727	31,971	44,312	42,064	69,115	79,993	119,014	143,109
		-10℃	6,608	8,627	13,180	17,385	23,927	28,416	38,074	44,298	65,562	79,136
		-20℃	4,176	5,382	8,327	10,661	14,606	17,504	23,714	27,767	40,834	49,518
		-25℃	3,215	4,109	6,419	8,012	10,921	13,202	18,038	21,227	31,060	37,802
Compressor	Type		2DES-3	4FES-5	4DES-7	4VES-10	4PES-15	4NES2-20	4HE-25	4GE-30	6GE-40	6FE-50
	Start Electric Current		81.4 / 47.0	136.8 / 79.0	181.2 / 104.6	208.0 / 126.0	278.0 / 168.0	333.0 / 201.0	444.0 / 268.0	491.0 / 296.0	762.0 / 460.0	851.0 / 513.0
	Operating Electric Current		18.1 / 10.9	22.7 / 13.7	34.7 / 21.0	41.9 / 25.3	59.4 / 35.8	69.9 / 42.2	92.6 / 55.9	107.8 / 65.0	155.6 / 93.8	202.5 / 122.2
	CMH		16.2	21.78	32.39	41.92	58.53	67.89	88.83	101.98	153	183.07
	Oil	Form	SUNSO 3GS
	Oil	Volume	1.5	2	2	2.6	2.6	2.6	4.5	4.5	4.75	4.75
	Cooling Type		Refrigerant Cooling
	Crankcase Heater		120			140
Condenser	Heat Exchange		FIN & TUBE
	Air blower	Fan	Ø 400	Ø 400	Ø 500	Ø 500	Ø 600	Ø 630	Ø 600	Ø 630	Ø 600	Ø 630
		Output(W)	0.1㎾ x 6PX 2EA	0.1㎾ x 6PX 2EA	0.2㎾ x 6PX 2EA	0.2㎾ x 6PX 2EA	0.4㎾ x 6PX 2EA	0.75㎾ x 6PX 2EA	0.4㎾ x 6PX 3EA	0.75㎾ x 6PX 3EA	0.4㎾ x 6PX 4EA	0.75㎾ x 6PX 4EA
		Air Volume	98	98	168	168	296	362	444	543	592	724
Receiver Tank	Volume(ℓ)		3.4ℓ	6.5ℓ	8.7ℓ	14.8ℓ	26ℓ	39ℓ	49ℓ	49ℓ	65ℓ	94ℓ
Receiver Tank	Pusible Plug		Ø4.5 (72℃)			Ø5.2 (72℃)					Ø8.5 (72℃)
Condenser Pressure Control			High Pressure Switch
Control Pressure Control			Dual Pressure Switch / Compressor anti Overhead, Safety Valve-option
Content			Flexible Tube, Muffler, Oil seperator, Receiver Tank, Filter Drier, Sight Glass, Solenoid Valve, Bracket Valve, Pressure Gauge, Accumulator
Connection piping	Gas Inlet		7/8" (22.22㎜)	7/8" (22.22㎜)	1-1/8" (28.58㎜)	1-1/8" (28.58㎜)	1-3/8" (34.92㎜)	1-5/8" (41.28㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)
Connection piping	Liquid Outlet		3/8" (9.52㎜)	1/2" (12.7㎜)	1/2" (12.7㎜)	5/8" (15.88㎜)	3/4" (19.05㎜)	3/4" (19.05㎜)	7/8" (22.22㎜)	7/8" (22.22㎜)	1-1/8" (28.58㎜)	1-1/8" (28.58㎜)
Outside dimension	L(length)		1,180	1,320	1,550	1,550	1,641	1,840	2,325	2,325	2,885	3,180
	W(Width)		600	680	720	720	830	903	903	903	1,018	1,018
	H(Height)		1,440	1,450	1,409	1,460	1,751	1,801	1,901	2,106	2,161
Anchor size(L' x W')			1016 x 625	1050 x 708	1233 x 747	1233 x 747	1324 x 855	1530 x 930	2002 x 930	2002 x 930	2562 x 1045	2858 x 1045
Weight (kg)			250	280	390	410	530	600	780	820	1100	1400

PA-TYPE (for quick freezing)

Features of product

Integral condensing unit for quick freezing

2-stage semi-sealed reciprocating BITZER compressor is applied

DEVICE

SPECIFICATION


Type name (model name)			PA0050F	PA0075F	PA0100F	PA0150F	PA0200F	PA0250F	PA0300F
Nominal output(HP)			5HP (3.7㎾)	7.5HP (5.5㎾)	10HP (7.5㎾)	15HP (11㎾)	20HP (15㎾)	25HP (18.5㎾)	30HP (22㎾)
Power supply	Main power supply		3ph 220 / 380V 60HZ
Power supply	Control power supply		1ph 220V 60HZ
Used refrigerant			R-22
Freezing capacity(Kcal/h) *CT : 45℃	ET℃	-20℃	9,505	13,610	20,562	30,128	34,920	40,091	47,967
		-25℃	7,879	11,320	17,103	25,229	29,242	33,573	40,168
		-30℃	6,443	9,823	14,025	20,864	24,182	27,763	33,218
		-40℃	4,092	5,887	8,893	13,454	15,594	17,903	21,421
Compressor	Type		S4T-5.2	S4N-8.2	S4G-12.2	S6J-16.2	S6H-20.2	S6G-25.2	S6F-30.2
	Start Electric Current		156.0 / 87.0	185.5 / 103.0	285.0 / 159.0	302.0 / 168.0	361.5 / 201.0	442.0 / 245.5	503.5 / 280.0
	Operating Electric Current		32.0 / 18.0	39.0 / 22.0	55.0 / 30.5	65.5 / 39.0	74.0 / 44.0	91.0 / 54.5	108.0 / 64.5
	CMH		17.11	24.30	36.67	44.51	51.64	59.21	70.71
	Oil	Form	-
	Oil	Volume	3	3	4.5	4.75	4.75	4.75	4.75
	Cooling Type		-
	Crankcase Heater		100		140
Condenser	Heat Exchange		FIN & TUBE
	Air blower	Fan	Ø 400	Ø 500	Ø 500	Ø 600	Ø 630	Ø 600	Ø 630
		Output(W)	0.1㎾ x 6PX 2EA	0.2㎾ x 6PX 2EA	0.2㎾ x 6PX 2EA	0.4㎾ x 6PX 2EA	0.75㎾ x 6PX 2EA	0.4㎾ x 6PX 3EA	0.75㎾ x 6PX 3EA
		Air Volume	98	168	168	296	362	444	543
Receiver Tank	Volume(ℓ)		6.5ℓ	8.7ℓ	14.8ℓ	26ℓ	39ℓ	49ℓ	49ℓ
Receiver Tank	Pusible Plug		Ø4.5 (72℃)		Ø5.2 (72℃)
Condenser Pressure Control			High Pressure Switch
Control Pressure Control			Dual Pressure Switch / Compressor anti Overhead
Content			Flexible Tube, Muffler, Oil seperator, Receiver Tank, Filter Drier, 중간냉각기(Sub Cooler), Sight Glass, Solenoid Valve, Bracket Valve, Pressure Gauge, Accumulator, CiC Countrol System(option)
Connection piping	Gas Inlet		1-1/8" (28.58㎜)	1-1/8" (28.58㎜)	1-3/8" (34.92㎜)	1-5/8" (41.28㎜)	1-5/8" (41.28㎜)	1-5/8" (41.28㎜)	1-5/8" (41.28㎜)
Connection piping	Liquid Outlet		1/2" (12.7㎜)	5/8" (15.88㎜)	5/8" (15.88㎜)	7/8" (22.22㎜)	7/8" (22.22㎜)	7/8" (22.22㎜)	7/8" (22.22㎜)
Outside dimension	L(length)		1,320	1,550	1,550	1,641	1,840	2,325	2,325
	W(Width)		680	720	720	830	903	903	903
	H(Height)		1,450	1,409	1,460	1,751	1,801	1,901	1,901
Anchor size(L' x W')			1050 x 708	1233 x 747	1233 x 747	1324 x 855	1530 x 930	2002 x 930	2002 x 930
Weight (kg)			280	390	410	530	600	780	820

CY-TYPE

Features of product

Integral condensing unit for air-conditioning and cold storage warehouse

sealed reciprocating BITZER compressor is applied

DEVICE

SPECIFICATION


Type name (model name)			SY-CY0030H	SY-CY0050H	SY-CY0075H	SY-CY0100H
Nominal output(HP)			3HP (2.2㎾)	5HP (3.75㎾)	7.5HP (5.5㎾)	10HP (7.5㎾)
Power supply	Main power supply		3ph 220 / 380V 60HZ
Power supply	Control power supply		1ph 220V 60HZ
Used refrigerant			R-22
Freezing capacity(Kcal/h) *CT : 50℃	ET℃	+5℃	7,522	14,774	19,396	21,980
		0℃	6,168	11,874	15,715	17,543
		-5℃	4,560	9,380	12,535	13,755
		-10℃	3,884	7,248	9,808	10,547
Compressor	Type		MT36	MT64	MT81	MT100
	Start Electric Current		75 / 33	128 / 63	155 / 69	157 / 79
	Operating Electric Current		12 / 6	19.5 / 10	33.6 / 16.4	28.5 / 14
	CMH		12.7	22.6	28.5	35.9
	Oil	Form	SUNSO 4GS / MOBILE E155
	Oil	Volume	1.8L	3.9L	3.9L	8L
	Cooling Type		Refrigerant Cooling
	Crankcase Heater		35W
Condenser	Heat Exchange		FIN & TUBE
	Air blower	Fan	Ø 450	Ø 550	Ø 630	Ø 700
		Output(W)	0.1㎾ x 6PX 2EA
		Air Volume	72 CMM	109 CMM	181 CMM	236 CMM
Receiver Tank	Volume(ℓ)		3.4ℓ	6.5ℓ	8.7ℓ	14.8ℓ
Receiver Tank	Pusible Plug		Ø4.5 (72℃)			Ø5.2 (72℃)
Condenser Pressure Control			High Pressure Switch
Control Pressure Control			Dual Pressure Switch / Compressor anti Overhead
Content			Filter Drier, Receiver Tank, Sight Glass, Accumulator, Bracket Valve, Suction Strainer, Pressure Gauge(High, Low Gauge), Flexible Tube, Muffler, Oil seperator, Solenoid Valve
Connection piping	Gas Inlet		5/8" (15.88㎜)	7/8" (22.22㎜)	1-1/8" (28.58㎜)	1-3/8" (34.92㎜)
Connection piping	Liquid Outlet		3/8" (9.52㎜)	1/2" (12.7㎜)	5/8" (15.88㎜)	5/8" (15.88㎜)
Outside dimension	L(length)		1,050	1,205	1,320	1,500
	W(Width)		665	765	865	1,000
	H(Height)		779	880	1,033	1,083
Anchor size(L' x W')			949 x 563	1104 x 663	1218 x 763	1399 x 898
Weight (kg)			-	-	-	-

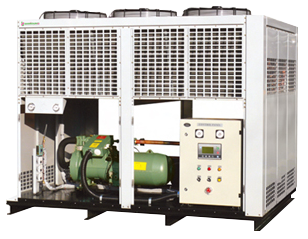

SPA-TYPE (screw for medium temperature)

Features of product

Integral air cooled condensing unit for air-conditioning and cold storage

semi-sealed screw BITZER compressor is applied

DEVICE

SPECIFICATION


Type name (model name)			SPA0500M	SPA0600M	SPA0700M	SPA0800M	SPA0900M
Nominal output(HP)			50HP / 37㎾	60HP / 44㎾	70HP / 52㎾	80HP / 60㎾	90HP / 66㎾
Refrigeration ton(RT)			19.41	24.12	28	32.23	36.58
Power supply	Main power supply		3ph 220 / 380V 60HZ (Part Winding)
Power supply	Control power supply		1ph 220V 60HZ
Used refrigerant			R-22
Freezing capacity(Kcal/h) *CT : 45℃	ET℃	+5℃	116,358	147,404	169,162	197,800	228,760
		0℃	96,062	122,636	138,288	163,142	190,920
		-5℃	77,830	100,276	110,854	132,354	156,004
		-10℃	61,490	80,066	86,602	104,576	124,700
Compressor	Type		CSH6553-50-35P	CSH6563-60-35P	CSH7553-70-35P	CSH7563-80-35P	CSH7573-90-35P
	Start Electric Current		256 / 498	326 / 615	366 / 612	442 / 738	534 / 866
	Operating Electric Current		105	131	155	175	197
	CMH		165	205	238	274	311
	Oil	Form	B-320SH
	Volume control(%)		100 / 75 / 50 / 25 (4-STEP) OR 100++25 (STEPLESS)
Condenser	Heat Exchange		FIN & TUBE
	Air blower	Fan	Ø 630	Ø 630	Ø 630	Ø 630	Ø 630
		Output(W)	0.75㎾ x 6PX 4EA	0.75㎾ x 6PX 6EA	0.75㎾ x 6PX 6EA	0.75㎾ x 6PX 8EA	0.75㎾ x 6PX 8EA
		Air Volume	724	1,086	1,086	1,448	1,448
Condenser Pressure Control			High Pressure Switch
Control Pressure Control			Dual Pressure Switch, Reverst Phase Relay, Compressor Motor internal Thermostat, Pressure Safety Valve-option, Economizer-option
Content			Receiver Tank, Accumulator, Core Drier, Sight Glass, Injection Line, Bracket Valve, Pressure Gauge
Connection piping	Gas Inlet		2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	3-1/8" (79.4㎜)	3-1/8" (79.4㎜)	3-1/8" (79.4㎜)
Connection piping	Liquid Outlet		1-1/8" (28.58㎜)	1-1/8" (28.58㎜)	1-3/8" (34.92㎜)	1-3/8" (34.92㎜)	1-3/8" (34.92㎜)
Outside dimension(L x W x H)			1910 x 1950 x 2121	2680 x 1950 x 1978	2680 x 1950 x 2121	3400 x 1950 x 2100	3440 x 1960 x 2300
Anchor size(L' x W')			1854 x 1854	2854 x 1854	2854 x 1854	3300 x 1854	3300 x 1864

SPA-TYPE (ECONOMISER)

Features of product

Integral air cooled condensing unit for low temperature and freezing

semi-sealed screw BITZER compressor is applied

DEVICE

SPECIFICATION


Type name (model name)			SPA0200L	SPA0250L	SPA0300L	SPA0400L	SPA0500L	SPA0600L	SPA0700L	SPA0750L
Nominal output(HP/㎾)			20 (15)	25 (18.5)	30 (22)	40 (30)	50 (37)	60 (44)	70 (52)	75 (55)
Refrigeration ton(RT)			11.88	14.23	16.7	19.76	23.29	27.29	31.29	35.52
Power supply	Main power supply		3ph 220 / 380V 60HZ
Power supply	Control power supply		1ph 220V 60HZ
Used refrigerant			R-22 (R-404A, R-507)
Freezing capacity(Kcal/h) *CT : 50℃	ET℃	-20℃	27,520	33,282	39,646	46,612	55,556	67,854	77,916	84,538
		-25℃	21,758	26,488	31,562	37,066	44,290	53,836	62,006	67,424
		-30℃	16,899	20,640	24,768	28,982	34,658	41,882	48,504	52,890
		-40℃	9,417	14,104	14,173	16,425	19,866	23,478	27,692	30,444
Compressor	Type		HSN5343-20	HSN5353-25	HSN5363-30	HSN6451-40	HSN6461-50	HSN7451-60	HSN7461-70	HSN7471-75
	Start Electric Current		163 / 241	159 / 275	194 / 336	236 / 395	260 / 448	337 / 567	366 / 612	442 / 738
	Max Electric Current(A)		61	66	73	82	100	124	156	182
	CMH		101	121	142	168	198	232	266	302
	Operation method		Part Winding
	Kind of oil		B-1000, (B-150SH)
	Oil injection method		Differertial Pressure Feed Oil
	Volume control range		100/85/55	100/80/45	100/70/40	100/75/50
Condenser	Heat Exchange		FIN & TUBE
	Air blower	Fan	Ø 630	Ø 630	Ø 630	Ø 630	Ø 630	Ø 630	Ø 630	Ø 630
		Output(W)	0.75㎾ x 6PX 4EA	0.75㎾ x 6PX 4EA	0.75㎾ x 6PX 4EA	0.75㎾ x 6PX 6EA	0.75㎾ x 6PX 6EA	0.75㎾ x 6PX 6EA	0.75㎾ x 6PX 6EA	0.75㎾ x 6PX 8EA
		Air Volume	724	724	724	724	724	1086	1086	1448
Condenser Pressure Control			High Pressure Switch
Control Pressure Control			Dual Pressure Switch, Phase Controller, Motor and discharge gas thermo limiter, Oil Flow Switch, Oil Level Switch, EOCR, Safety Valve-option
Content			Receiver Tank, Accumulator, Ecomomizer, Core Drier, Sight Glass, Bracket Valve, Pressure Gauge, Solenoid Valve
Connection piping	Gas Inlet		2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	3-1/8" (79.4㎜)	3-1/8" (79.4㎜)	3-1/8" (79.4㎜)
Connection piping	Liquid Outlet		7/8" (22.22㎜)	7/8" (22.22㎜)	7/8" (22.22㎜)	1-1/8" (28.58㎜)	1-1/8" (28.58㎜)	1-3/8" (34.92㎜)	1-3/8" (34.92㎜)	1-3/8" (34.92㎜)

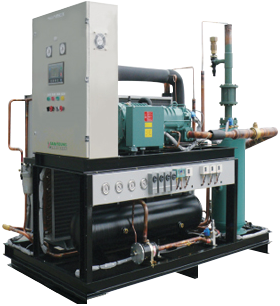

SW-TYPE (water cooled screw)

Features of product

Integral water cooled condensing unit for low temperature freezing

semi-sealed screw BITZER compressor is applied

DEVICE

SPECIFICATION


Type name (model name)			SW0200L	SW0250L	SW0300L	SW0400L	SW0500L	SW0600L	SW0700L	SW0750L
Nominal output(HP/㎾)			20 (15)	25 (18.5)	30 (22)	40 (30)	50 (37)	60 (44)	70 (52)	75 (55)
Refrigeration ton(RT)			11.88	14.23	16.7	19.76	23.29	27.29	31.29	35.52
Power supply	Main power supply		3ph 220 / 380V 60HZ
Power supply	Control power supply		1ph 220V 60HZ
Used refrigerant			R-22 (R-404A, R-507)
Freezing capacity(Kcal/h) *CT : 50℃	ET℃	-20℃	41710	49278	57448	66220	78088	95718	107672	115742
		-25℃	34314	40678	47558	54782	54572	78690	89010	95976
		-30℃	27778	33110	38786	44634	52890	63812	72584	78518
		-40℃	17054	20726	24424	27864	33368	39388	45752	49708
Compressor	Type		HSN5343-20	HSN5353-25	HSN5363-30	HSN6451-40	HSN6461-50	HSN7451-60	HSN7461-70	HSN7471-75
	Start Electric Current		163 / 241	159 / 275	194 / 336	236 / 395	260 / 448	337 / 567	366 / 612	442 / 738
	Max Electric Current(A)		61	66	73	82	100	124	156	182
	CMH		101	121	142	168	198	232	266	302
	Operation method		Part Winding
	Kind of oil		B-1000, (B-150SH)
	Oil injection method		Differertial Pressure Feed Oil
	Volume control range		100/85/55	100/80/45	100/70/40	100/75/50
Condenser	Heat Exchange		Shell & Tube Type
	Cold water temperature		Inlet: 32℃, Outlet: 37℃
	Cooling water volume		12.8	15	17.4	20.1	23.7	29	32.3	34.8
Control Pressure Control			Phase Controller, Motor and discharge gas thermo limiter, Oil Flow Switch, Oil Level Switch, EOCR, Safety Valve-option
Content			Receiver Tank, Accumulator, Ecomomizer-option, Core Drier, Sight Glass, Bracket Valve, Pressure Gauge, Solenoid Valve
Connection pipe diameter	Gas Inlet		2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	2-1/8" (53.98㎜)	3-1/8" (79.4㎜)	3-1/8" (79.4㎜)	3-1/8" (79.4㎜)
	Liquid Outlet		7/8" (22.22㎜)	7/8" (22.22㎜)	7/8" (22.22㎜)	1-1/8" (28.58㎜)	1-1/8" (28.58㎜)	1-3/8" (34.92㎜)	1-3/8" (34.92㎜)	1-3/8" (34.92㎜)
	Water Inlet/Outlet		65	65	65	80	80	100	100	100

CUST-TYPE (2-stage water cooled screw)

Features of product

Optimized design suitable for installation environment such as air cooling type, water cooling type, remote type unit, etc.

realization of low evaporation temperature (R-22:-60℃, R-404A:-65℃)

Increased energy efficiency by more than 30%, compared with single stage screw compressor in the temperature range of -30℃ ~ -60℃.

Perfect automatic control and operation status display function by adopting micom / Product line of 50HP, 75HP and 100HP models.

Product line of 50HP, 75HP and 100HP models

DEVICE

SPECIFICATION


Type name (model name)			CUST0500TF	CUST0750TF	CUST1000TF
Refrigerant			R-22, R404A, R-507
Evaporate temp.			-30 ~ -60 (R-404A : -65)
Freezing capacity(Kcal/h) *CT : 45℃	ET℃	-30℃	74,562	111,284	149,640
		-40℃	49,536	72,756	97,094
		-50℃	30,530	44,032	58,136
		-60℃
Legal Freezing capacity (TR)			14.56	19.84	23.69
Compressor	Type name (model name)		SRT314	SRT321	SRT324
	RPM		3350
	Rated power		37㎾	55㎾	75㎾
	Type		Bipolar, 3 phase induction motor
	Starting		Y-△
Power supply (Main power)			3ph 220 / 380V 60HZ
Initional charged oil			18ℓ	40ℓ	40ℓ
Condenser	Heat Exchange		Shell & Tube
	Transfer Area		26.2 ㎡	39.3 ㎡	53.4 ㎡
	Receiver Tank Volume		52ℓ	80ℓ	105ℓ
	Internal Volume Refrigerant side		148ℓ	175ℓ	324ℓ
Piping Size	Refrigerant Gas Inlet		2-5/8"	4-1/8"	4-1/8"
	Refrigerant Liquid Outlet		1-1/8"	1-1/8"	1-1/8"
	Cooling Water Inlet/Outlet	Condenser(Condenser)	80	80	100
	Cooling Water Inlet/Outlet	Oil Cooler	1	1	1

CUSA-TYPE (2-stage air cooled screw)

Features of product

Optimized design suitable for installation environment such as air cooling type, water cooling type, remote type unit, etc.

Realization of low evaporation temperature (R-22:-60℃, R-404A:-65℃)

Large capacity can be realized by combining multi compressors.

Increased energy efficiency by more than 30%, compared with single stage screw compressor in the temperature range of -30℃ ~ -60℃.

Perfect automatic control and operation status display function by adopting micom

Product line of 50HP, 75HP and 100HP models

DEVICE

SPECIFICATION


Type name (model name)			CUSA0500TF	CUSA0750TF	CUSA1000TF
Refrigerant			R-22, R404A, R-507
Evaporate temp.			-30 ~ -60 (R-404A : -65)
Freezing capacity(Kcal/h) *CT : 45℃	ET℃	-30℃	67,252	99,502	135,192
		-40℃	44,720	65,102	87,634
		-50℃	27,606	39,474	52,546
		-60℃	16,082	22,618	30,014
Legal Freezing capacity (TR)			14.56	19.84	23.69
Compressor	Type name (model name)		SRT314	SRT321	SRT324
	RPM		3350
	Rated power		37㎾	55㎾	75㎾
	Type		Bipolar, 3 phase induction motor
	Starting		Y-△
Power supply (Main power)			3ph 220 / 380V 60HZ
Initional charged oil			18ℓ	40ℓ	40ℓ
Condenser	Heat Exchange		MULTI PASS CROSS PIN & TUBE
	Transfer Area		379 ㎡	695 ㎡	879 ㎡
	Fan & Moto (Øx㎾xPxEA)		650x0.75x6x4	650x0.75x6x8	650x0.75x6x10
	Air Volume (CMM)		724	1448	1810
Piping	Refrigerant Gas Inlet		2-5/8"	4-1/8"	4-1/8"
Piping	Refrigerant Liquid Outlet		1-1/8"	1-1/8"	1-1/8"
Evaporator	Length		1910 ㎜	3440 ㎜	4300 ㎜
	Width		1905-05-03 ㎜	1905-05-03 ㎜	1905-05-13 ㎜
	Height		2120 ㎜	2100 ㎜	2280 ㎜

HERMETIC SCROLL C.D.U

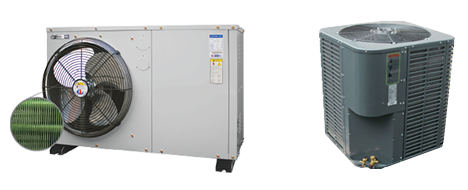

Product View

SPECIFICATION


Type name (model name)		SR020M42	SR030M42	SR050M42
Capacity	ET 0℃	5.8	8.75	14.6
	ET -5℃	4.7	7.2	11.9
	ET -10℃	3.75	5.85	9.65
Power supply		220V 1PH 60Hz		380V 3PH 60Hz
Compressor		Hermetic Scrool
Refrigerant		R22
Fan & Motor		Ø 440 x 68W x 1	Ø 482 x 120W x 1	Ø 600 x 162W x 1
Air Volume(CMH)		2,700	2,700	3,200
Compressor starting or operating current		61.0 / 13.6	100 / 17.9	64.0 / 10.7
Piping Connection		3/8" / 3/4"	3/8" / 3/4"	1/2" / 7/8"

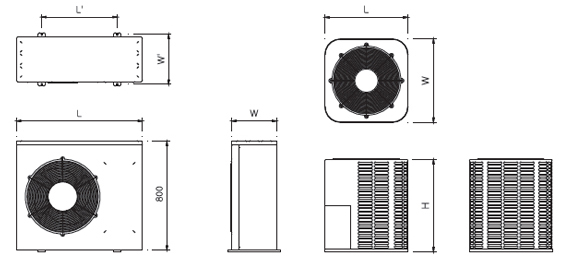

DIMENSION

Product Size


Type name (model name)		SR020M42	SR030M42	SR050M42
Dimensions	Length	800	902	745
	Width	300	332	745
	Height	690	795	823
Anchor size(L' x W')		540 x 325	540 x 355	-

The sizes and specifications are subject to change for quality development without prior notice.

스킵 네비게이션

Product

Condensing unit

본문 다시읽기
